How to create an Azure Batch's Application Package automatically

While using Azure Batch, you may need to create an application package to run your applications in the cloud.

The creation can be done manually, generating and uploading a .zip file to the Azure Batch resource Portal. However, this process can be tedious and time-consuming, especially if you have multiple applications or need to update the package frequently, for instance at every new release (or hotfix!).

In this post we will cover how to automate the creation of an Azure Batch application package using a Python script.

Prerequisites

Things you should know

Basic knowledge of Python and Azure Batch
What is an Application Package

Packages

The following packages are required:

pip install azure-identity azure-mgmt-batch azure-storage-blob

Steps

The script will: 1. Create a new version of the application package (and a new application if it does not exist). 1. Zip the needed files 1. Upload the zip file to Azure Blob Storage 1. Activate the new version of the application package

Step by step

NOTE: For the sake of simplicity, we will use the AzureDefaultCredential, which uses the Azure CLI credentials. You can use any other authentication method supported by the Azure SDK for Python.

All the configuration parameters are stored in environment variables. You can set them in your terminal or use a .env file with the python-dotenv package.

1. Create a new version of the application package

from azure.identity import DefaultAzureCredential
from azure.mgmt.batch import BatchManagementClient

client = BatchManagementClient(
        credential=DefaultAzureCredential(),
        subscription_id=os.getenv("SUBSCRIPTION_ID"),
    )

response = client.application_package.create(
    resource_group_name=os.getenv("RESOURCE_GROUP_NAME"),
    account_name=os.getenv("BATCH_ACCOUNT_NAME"),
    application_name=os.getenv("APPLICATION_NAME"),
    version_name=os.getenv("VERSION_NAME"),
)
if response.state == "Active":
    raise Exception("Application package is already active. Please provide a new version name.")

elif response.state == "Pending":
    ...

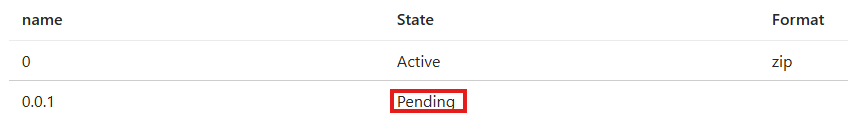

On the Batch portal, in Features/Applications you will see something like this: alt text

2. Zip the needed files

from tempfile import TemporaryDirectory
from os.path import isdir, join
import shutil

...
elif response.state == "Pending":
    with TemporaryDirectory() as temp_dir:
        for file in needed_files:
            path = join(BASE_DIR, file)
            if isdir(path):
                shutil.copytree(path, join(temp_dir, file))
            else:
                shutil.copy(path, temp_dir)

        tmp_path = join(temp_dir, os.getenv("VERSION_NAME"))
        shutil.make_archive(tmp_path, "zip", root_dir=temp_dir)
        ...

The needed files (a list of files path to be added to the archive) are defined above in the script.

3. Upload the zip file to Azure Blob Storage

The response object of step 1 contains the URL of the blob storage where the application package will be uploaded. We can use the azure-storage-blob package to upload the zip file to the blob storage.

from azure.storage.blob import BlobClient

    ...
    blob_client = BlobClient.from_blob_url(response.storage_url)
    with open(tmp_path + ".zip", "rb") as data:
        blob_client.upload_blob(data, overwrite=True)

4. Activate the new version of the application package

After uploading the zip file, we need to activate the new version of the application package. We can do this by calling the activate method of the BatchManagementClient class.

client.application_package.activate(
    resource_group_name=os.getenv("RESOURCE_GROUP_NAME"),
    account_name=os.getenv("BATCH_ACCOUNT_NAME"),
    application_name=os.getenv("APPLICATION_NAME"),
    version_name=os.getenv("VERSION_NAME"),
    parameters={"format": "zip"},
)

The application package is now active and ready to be used in your Azure Batch jobs.

Complete code

from azure.identity import DefaultAzureCredential
from azure.mgmt.batch import BatchManagementClient
from azure.storage.blob import BlobClient
import os
from os.path import isdir, join
import shutil
from tempfile import TemporaryDirectory


needed_files = [
    "setup.py
    "setup.cfg",
    "code" # this is a folder
]

client = BatchManagementClient(
        credential=DefaultAzureCredential(),
        subscription_id=os.getenv("SUBSCRIPTION_ID"),
    )

response = client.application_package.create(
    resource_group_name=os.getenv("RESOURCE_GROUP_NAME"),
    account_name=os.getenv("BATCH_ACCOUNT_NAME"),
    application_name=os.getenv("APPLICATION_NAME"),
    version_name=os.getenv("VERSION_NAME"),
)
if response.state == "Active":
    raise Exception("Application package is already active. Please provide a new version name.")

elif response.state == "Pending":

    with TemporaryDirectory() as temp_dir:
        for file in needed_files:
            path = join(BASE_DIR, file)
            if isdir(path):
                shutil.copytree(path, join(temp_dir, file))
            else:
                shutil.copy(path, temp_dir)


        tmp_path = join(temp_dir, os.getenv("VERSION_NAME"))
        shutil.make_archive(os.getenv("VERSION_NAME"), "zip", root_dir=temp_dir)

        blob_client = BlobClient.from_blob_url(response.storage_url)
        with open(tmp_path + ".zip", "rb") as data:
            blob_client.upload_blob(data, overwrite=True)

client.application_package.activate(
    resource_group_name=os.getenv("RESOURCE_GROUP_NAME"),
    account_name=os.getenv("BATCH_ACCOUNT_NAME"),
    application_name=os.getenv("APPLICATION_NAME"),
    version_name=os.getenv("VERSION_NAME"),
    parameters={"format": "zip"},
)
